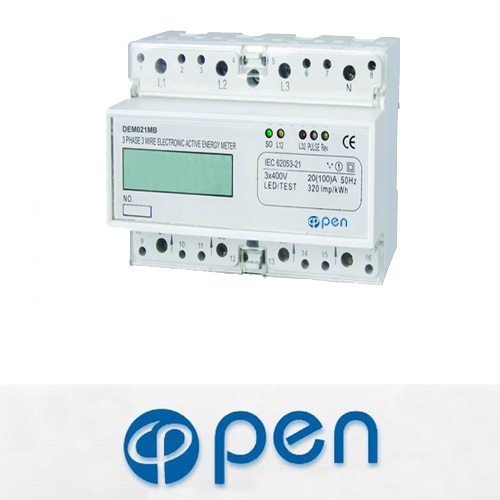

DEM021MB |
|||||||||||||||||
| THREE PHASE FOUR WIRE ELECTRONIC DIN-RAIL ACTIVE ENERGY METER | |||||||||||||||||
| Application | |||||||||||||||||
|
Model DEM021MB three phase three wire electronic DIN rail active energy meter is a kind of new style three phase three wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy |
|||||||||||||||||
| Functions and features | |||||||||||||||||
| ● 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves. ● Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. ● Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering). ● There is a maintenance-free lithium batteries in it, it use for displaying power cut reading ● There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant (the output rate is 10 or 100imp/kWh, can select). And contact with all kind of AMR system conveniently. Complying with standard IEC 62053-31 and DIN 43864. ● Four LED instructions respectively power supply state (line voltage L12 & L32) and signal of closed energy impulse and distant energy impulse. ● Automatic detection the direction of the flow of load current. And Instructions on individual LED ● Single direction two components measure three phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. ● Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use CT (Product Configuration code is LB) and PT & CT (Product Configuration code is KB) for operation. ● Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is ME). |
|||||||||||||||||
| Technical parameters | |||||||||||||||||
|
|||||||||||||||||
| *If you need different reference voltage or current specification, please advisory our sales. | |||||||||||||||||

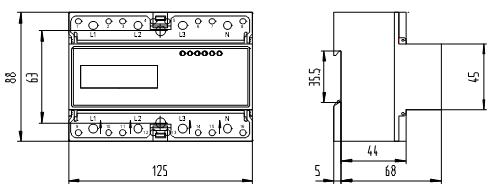

| Outer and mount dimension | |||||||||||||||||
 |
|||||||||||||||||

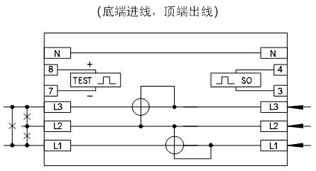

| Wiring diagram (Type S) | |||||||||||||||||
|
