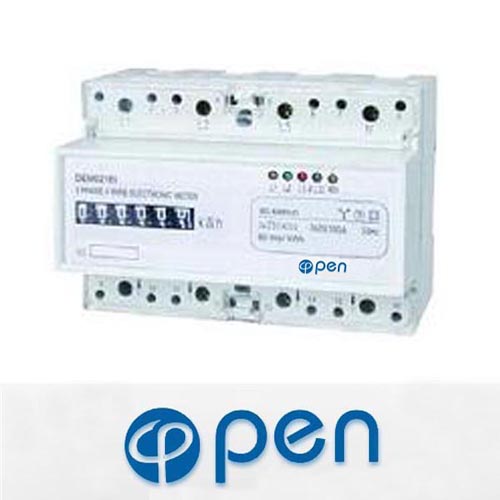

DEM021EI |
|||||||||||||||
| THREE PHASE FOUR WIRE ELECTRONIC DIN-RAIL ACTIVE ENERGY METER | |||||||||||||||
| Application | |||||||||||||||
|
Model DEM021EI three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step motor type |
|||||||||||||||
| Functions and features | |||||||||||||||
| ● 35mm standard DIN rail installation , complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves. ● Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. ● 6 digits display (999999kWh) by step motor type impulse register. ● Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity), (Product Configuration code is DF). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864. ● Four LED instructions respectively power supply state and signal energy impulse. ● Automatic detection the direction of the flow of load current. And Instructions on individual LED ● Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. ● May select two components measure three phase three wire active energy (Product Configuration code is EH) or two phase three wire active energy (Product Configuration code is EG). ● Direct connect operation, type S wiring (Inlet from bottom, outlet from top). ● Short terminals cover, in order to reduce mounting space, and make mounting conveniently. |
|||||||||||||||
| Technical parameters | |||||||||||||||
|
|||||||||||||||
| *If you need different reference voltage or current specification, please advisory our sales. | |||||||||||||||

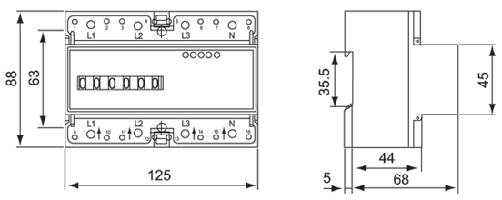

| Outer and mount dimension | |||||||||||||||
 |
|||||||||||||||

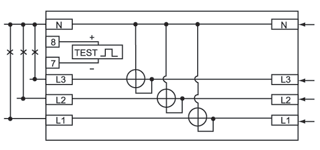

| Wiring diagram (Type S) | |||||||||||||||
|
