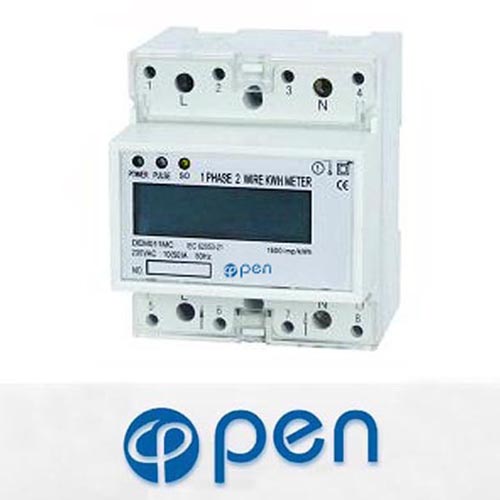

DEM011MC |
||||||||||||
| SINGLE PHASE ELECTRONIC DIN-RAIL ACTIVE ENERGY METER | ||||||||||||
| Application | ||||||||||||
|
Model DEM011MC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows the active energy |
||||||||||||
| Functions and features | ||||||||||||
| ● 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting (mounting holes center distance 63 mm), users can choose any one by themselves. ● Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. ● Seven digits LCD monitors, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering). ● There is a maintenance-free lithium batteries in it, use for displaying power cut reading. ● There are a polarity port of pulse output passive closed and a no polarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), And contact with all kind of AMR system conveniently, complying with standard IEC 62053-31 and DIN 43864. ● Three LED instructions respectively power supply state and signal of closed energy impulse and distant energy impulse. ● Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED. ● Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. ● Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of connection, and use CT (Product Configuration code is LC) and PT & CT (Product Configuration code is KC) for operation. ● Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is MF). |
||||||||||||
| Technical parameters | ||||||||||||
|
||||||||||||
| *If you need different reference voltage or current specification, please advisory our sales. | ||||||||||||

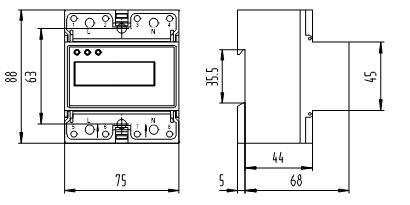

| Outer and mount dimension | ||||||||||||
 |
||||||||||||

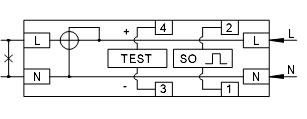

| Wiring diagram (Type S) | ||||||||||||
|
