D363 D364

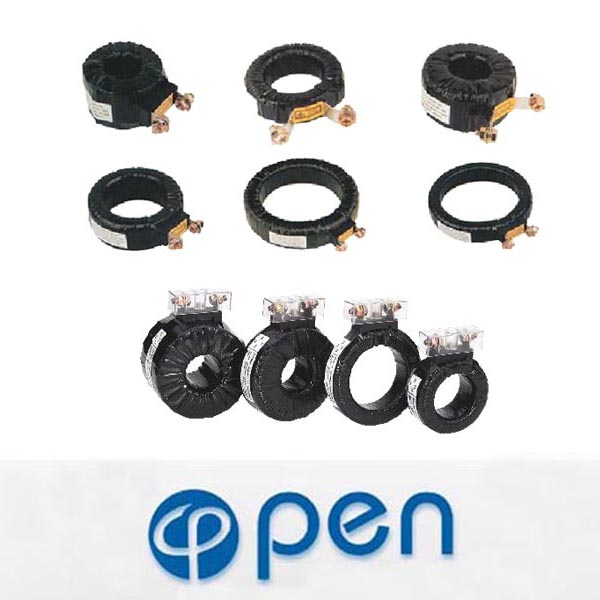

D363 D364 Current Transformers
| D363 D364 Series: |
|
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:
|
3 X 40A-600A
5A, 1A
BS7626, IEC44-1, IEC185
0.72/3KV
50-60Hz
1.25VA-5VA
0.5, 1.0, 3.0
Ith=60 X Ih
FS<5
|
|
| |
|
|
|
| Technical data: |
|
Model
|
Primary/ secondary
|
Busbar Hole Dimension
|
Rated Burden (VA)
|
class
|
Rated
Voltage
|
Rated
Frequency
|
|
D363
|
3 X 40/5A-500/5A
|
3 X 27mm
|
1.25-5VA
|
1/3
|
0.72
|
50/60Hz
|
|
D364
|
3 X 300/5A-600/5A
|
3 X 27mm
|
2.5-5VA
|
1/3
|
0.72
|
50/60Hz
|
|
| Dimension of case (mm): |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
D363
|
185
|
84
|
27
|
75
|
87
|
61
|
41
|
|
D364
|
185
|
84
|
37
|
37
|
87
|
61
|
41
|
|
|
