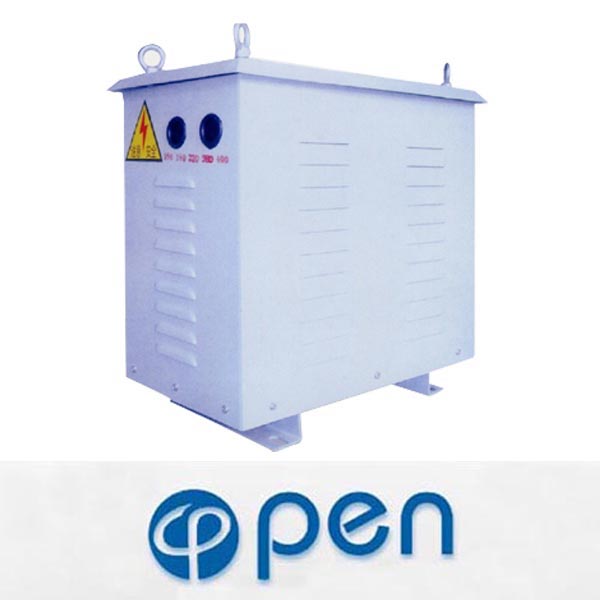

CSD Marine anti-drop-type transformers:
Marine transformer Main technical performance and parameters:
|
Model |
Primary rated voltage |
Secondary rated voltage |
Join group Labeling |
Loss (W) |
Empty (%) Current (%) |
Impedance (%) Voltage (%) |
Weight
(kg) |
Overall dimensions |
Gauge installed |
|||||
|
50Hz |
60Hz |
50Hz |
60Hz |
Empty |
Load |
L |
W |
H |
||||||
|
CSD-5 |
|
|
|
|
|
110 |
165 |
12 |
3.5 |
70 |
560 |
340 |
580 |
220*210 |
|
CSD-7 |
|
|
|
|
|
130 |
200 |
11 |
3.5 |
80 |
560 |
340 |
580 |
220*210 |
|
CSD-10 |
|
|
|
|
|
160 |
290 |
11 |
3.5 |
105 |
630 |
360 |
630 |
280*230 |
|
CSD-15 |
|
|
|
|
|
210 |
370 |
10 |
3.5 |
130 |
710 |
410 |
680 |
280*275 |
|
CSD-20 |
|
|
400 |
450 |
Yy0 |
230 |
480 |
8 |
3.5 |
155 |
710 |
410 |
680 |
280*275 |
|
CSD-25 |
400 |
450 |
230 |
230 |
|
250 |
530 |
7 |
3.5 |
190 |
760 |
410 |
730 |
500*290 |
|
CSD-30 |
|
|
|
|
Dd0 |
280 |
600 |
6 |
3.5 |
215 |
760 |
410 |
730 |
500*290 |
|
CSD-40 |
|
|
|
|
|
290 |
750 |
5 |
3.5 |
250 |
810 |
460 |
780 |
550*335 |
|
CSD-50 |
|
|
|
|
|
300 |
1045 |
4 |
3.5 |
300 |
860 |
510 |
830 |
550*385 |
|
CSD-63 |
|
|
|
|
|
340 |
1250 |
4 |
3.5 |
360 |
910 |
510 |
880 |
600*385 |
|
CSD-80 |
|
|
|
|
|
420 |
1450 |
3 |
3.5 |
430 |
960 |
560 |
930 |
600*435 |
|
CSD-100 |
|
|
|
|
|
510 |
1840 |
3 |
3.5 |
530 |
1160 |
630 |
1020 |
650*485 |
