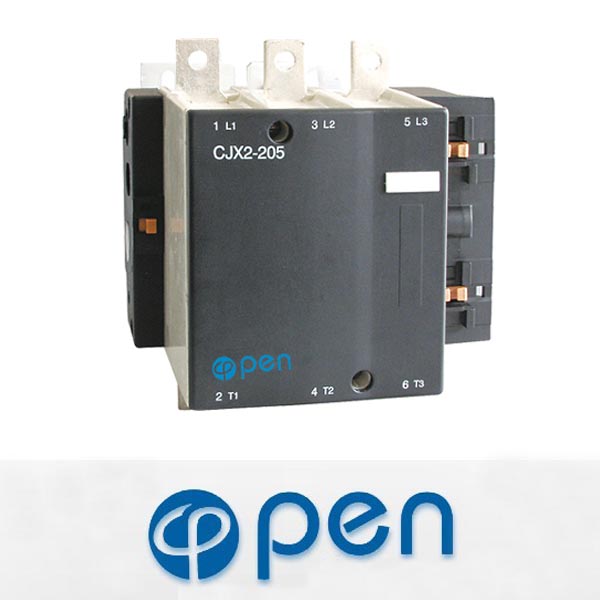

CJX2-F

CJX2-F
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


1.Application
CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.

2.Specification

Type

CJX2-F115

CJX2-F150

CJX2-F170

CJX2-F205

CJX2-F245

CJX2-F300

CJX2-F410

CJX2-F475

CJX2-F620

Rated workingcurrent (A)

AC3

115

150

170

205

245

300

410

475

620



AC4

52

60

75

85

105

117

138

147

180

Standard powerratings of 3-phase motors50/60Hz incategory AC-3

220/230V

30

40

55

63

75

100

110

147

200

380/400V

55

75

90

110

132

160

220

265

335

415V

59

80

100

110

132

180

220

280

375

500V

75

90

110

129

160

200

250

355

400

660/690V

80

100

110

129

160

220

280

355

450

Rated heat current (A)

200

250

250

275

315

400

500

700

1000

Electrical life

AC3 (x104)

200

60

60

50

50

50

30

30

20

AC4 (x104)

15

15

15

15

15

15

8

8

5

Mechanical life (x104)

300

300

300

300

300

300

300

100

100
