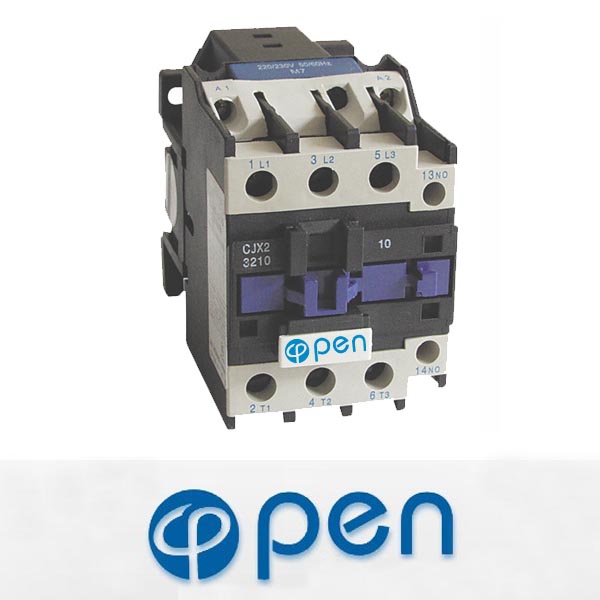

CJX2-D

Products

Electrical Distribution (178)

- MCB (12)
- RCCB RCBO (12)
- MCCB (10)
- ACB (2)
- Fuse (31)
- Switch (16)
- Surge protective device (9)
- Weatherproof switch (5)
- Distribution box (53)
- Automatic transfer switch (8)
- 16 series (20)

Industrial Control (517)

Power Management (534)

- Voltage stabilizers/regulators (16)
- Controllers (12)
- Capacitor (73)
- Transformers (28)
- Power transformers (13)
- Motor soft start,inverters (5)
- Energy meter (246)
- UPS (19)
- Industrial plugs and sockets (84)
- Power System Test Equipment (8)
- Inverter (9)
- Solar Power/Battery (9)
- Control Protective Switching Device (12)

Search Catalog

You are here: Home >> Products >> General-purpose contactor >> CJX2-D

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

1.Application
CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.

2. Specification

Type		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32	CJX2-D40	CJX2-D50	CJX2-D65	CJX2-D80	CJX2-D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10⁴)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10⁴)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10⁴)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
