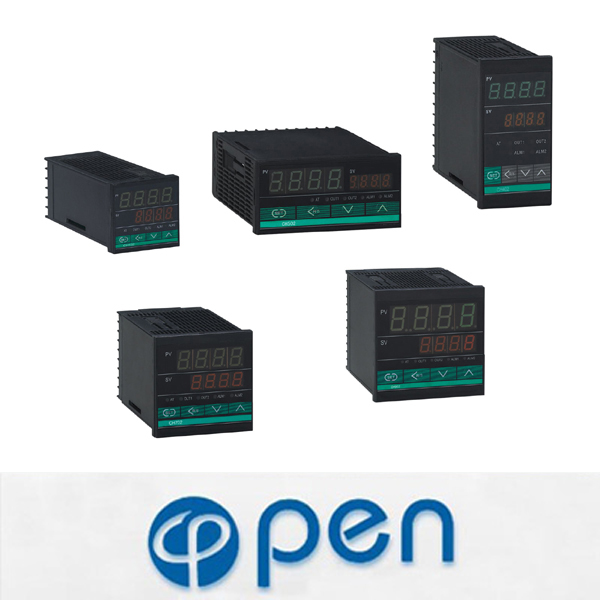

① Outline dimension

See the outline dimension picture

② Control Mode

F:PID operation andauto calculating(reverse operation)

D:PID operation and auto calculating (Forward operation)

W:hating/cooling PID operation and auto calculating (cooling water)*1

A: hating/cooling PID operation and auto calculating (cooling water)*1

③ Input mode

Refer to input Range Table

④ Range Code

Refer to input Range Table

⑤ First control output(OUT1) (Heating side)

M:Relay contact output

V:Voltage impulse output

T:Thyratron output

8:Current output(IC4-20mA)

G:Thyratron driving&triggering output

⑥ Second control output(OUT2)(Cooling side)*2

No mark:when the control mode is F or D

M: Relay contact output

V:Voltage impulse output

T:Thyratron output

8:Current output(IC4-20mA)

⑦ First alarm (ALM1)

⑧ Second alarm（ALM2）

N：no alarm

A:Upper-limit bias alarm

B:Lower-limit bias alarm

C: Upper/Lower-limit bias alarm

D:alarm in area

E:Standby upper-limit bias alarm attached

F: Standby lower-limit bias alarm attached

G: Standby upper/lower-limit bias alarm attached

H: Upper-limit input ＆#118alue alarm

J: Lower-limit input alarm

K: Standby upper-limit input alarm attached

L: Standby lower-limit input alarm attached

P:Heater breakage alarm(CTL-6)*3

S: Heater breakage alarm(CTL-12)*3

R:Control line breakage alarm*4

V:Upper-limit set ＆#118alue alarm

W:Lower-limit set ＆#118alue alarm

⑨ Communication*5

N:No communication

5.RS-485(two-wire system)

⑩ Water-proof/dust-proof

N:NO water-proof/dust-proof

1:with water- proof/dust-proof
