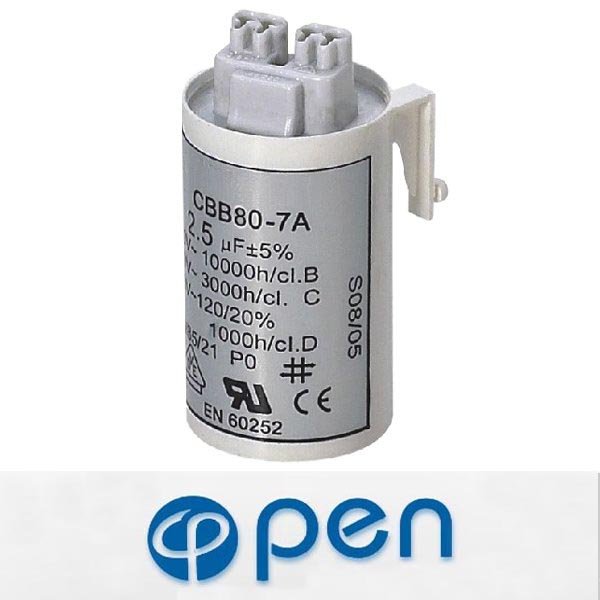

CBB80-7A

CBB80-7A
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


Ⅰ、General Description:
    In comformity with IEC1048 and En61048 requirements and can be aoolied to 50~60Hz AC power system.Produt Features:dry and  soakage,small in dimension,light, low dissipation factor,good self-healing character and especially safety reliability.Widely applied to fluorecent lamps and halogen lamps.

Ⅱ、Service Conditions
   1.Altitude: The altitude of area of installation and operation not exceeding 2000m.
   2.Residual voltage at energization : Not to exceed 10% rated voltage.
   3.Pollution: No electric dust, no corrosive gas or inflammable and explosive medium in the area of installation and operation.
   4.Operation temperature: Between -40℃ and +70℃
   5.Operation way: Continuous operation.
Ⅲ、Main Technical indexes:
   1.Rated voltage: 200VAC,250VAC,400VAC,450VAC and 500VAC.
   2.Rated frequency: 50Hz(60Hz).
   3.Rated capacitance: Between 1.0μF and 60.0μF
   4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.
   5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.
   6.Capacitance tolerance: Cn±5%.
   7.Tangent of loss angle(tgδ): tgδ≤0.10% (at 50Hz)
   8.Maximum permissible voltage:110% rated voltage.
   9.Maximum permissible current:130% rated current..
   10.Class of safety protection: p0(type CBB60,CBB61),P1(type CBB65)
   11.Standard: In conformity with GB3667-1997, IEC60252-1993.
