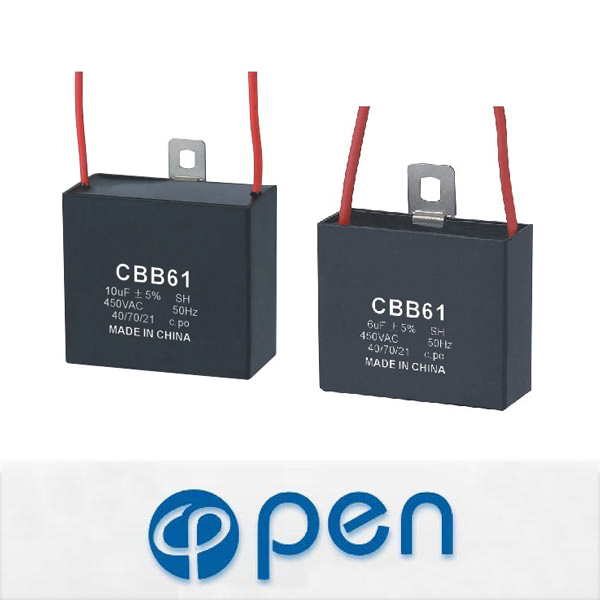

CBB61-5 Fan Capacitor

Features and Purposes of usage:

1.Rectangular fire-retardant plastic outer case. Welded pads or leads lead-out.
2.Small bulk volume. Light weight. Easy and reliable installation. Good spontaneous cure.
3.Application of ZnAI edge thickened evaporation technology. Good electric feature. High reliability.
4.Large resistance to electric shock. High electric resistance.
5.Suitable for start and running of 50Hz/60Hz AC motor. Especially suitable for electric appliances with small motors such as fans.

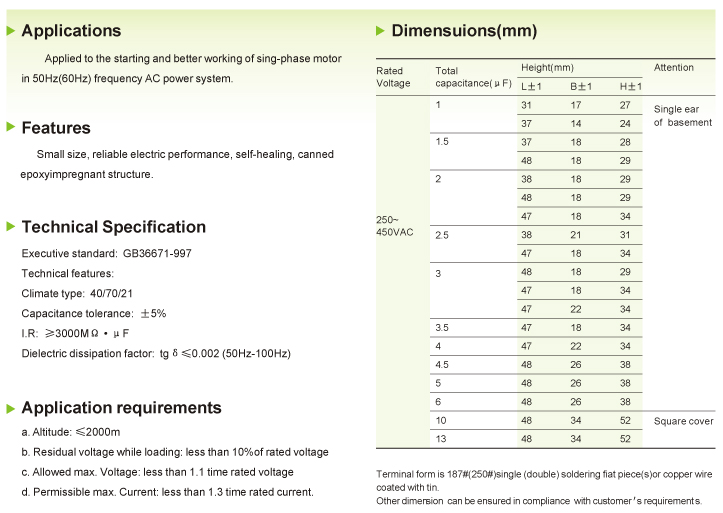

Technical standards:

GB3667-97,IEC252-93,UL810,EN60252(VDE0560-8)-91

Technical features:

1.Climate type:40/070/21
2.Rated voltage:250VAC,300VAC,350VAC,450VAC,500VAC
3.Capacity scope:1μF--60μF
4.Capacity error allowance:±5%, ±10%
5.Loss angle tangent &#118alue:≤0.002 (100HZ)
6.Withstand voltage:interstage U=1.75Un 10s
7.Withstand current:tactful currency I=In X 100
8.Inflaming retarding:UL94V-0 level
