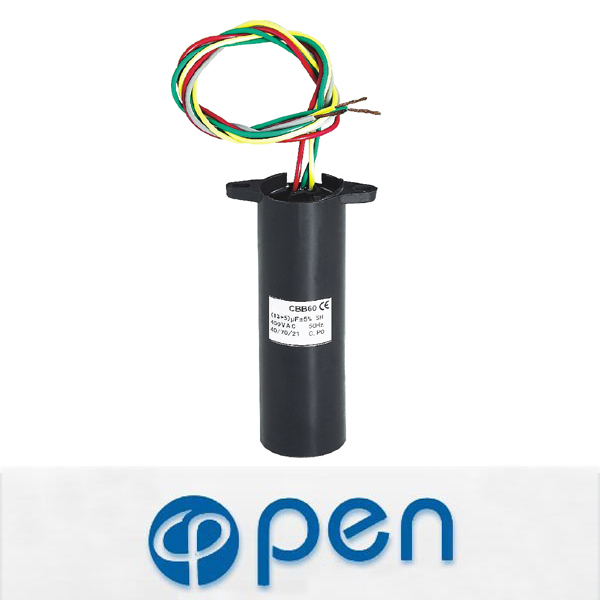

Opengroup Brand CBB60-9B type self healing A.C. Capacitor adopts advanced metallized film as materials. It is special used in lamp widely.

Ⅱ、Service Conditions
　　1.Altitude: The altitude of area of installation and operation not exceeding 2000m.
　　2.Residual voltage at energization : Not to exceed 10% rated voltage.
　　3.Pollution: No electric dust, no corrosive gas or inflammable and explosive medium in the area of installation and operation.
　　4.Operation temperature: Between -40℃ and +70℃
　　5.Operation way: Continuous operation.
Ⅲ、Main Technical indexes:
　　1.Rated voltage: 200VAC,250VAC,400VAC,450VAC and 500VAC.
　　2.Rated frequency: 50Hz(60Hz).
　　3.Rated capacitance: Between 1.0μF and 60.0μF
　　4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.
　　5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.
　　6.Capacitance tolerance: Cn±5%.
　　7.Tangent of loss angle(tgδ): tgδ≤0.10% (at 50Hz)
　　8.Maximum permissible voltage:110% rated voltage.
　　9.Maximum permissible current:130% rated current..
　　10.Class of safety protection: p0(type CBB60,CBB61),P1(type CBB65)
　　11.Standard: In conformity with GB3667-1997, IEC60252-1993.
