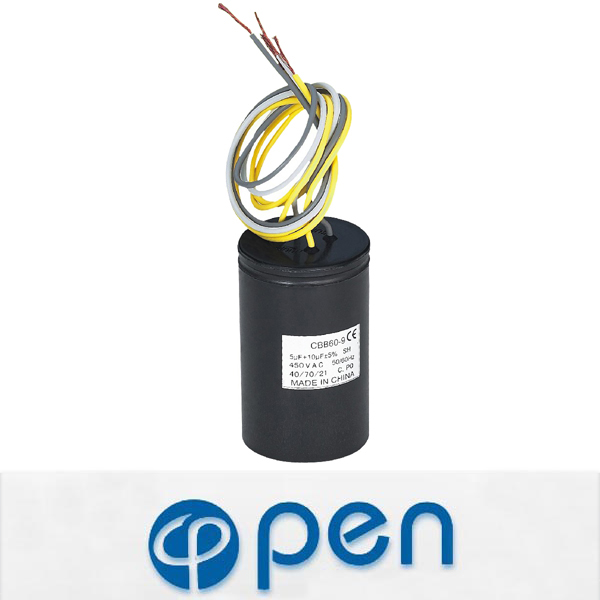

CBB60-9A Motor Run Capacitor
I. Characteristic and purpose:
Opengroup Brand CBB60-9A type self healing A.C. Capacitor adopts advanced metallized film as materials. It is special used in lamp widely.
Ⅱ、Service Conditions
1.Altitude: The altitude of area of installation and operation not exceeding 2000m.
2.Residual voltage at energization : Not to exceed 10% rated voltage.
3.Pollution: No electric dust, no corrosive gas or inflammable and explosive medium in the area of installation and operation.
4.Operation temperature: Between -40℃ and +70℃
5.Operation way: Continuous operation.
Ⅲ、Main Technical indexes:
1.Rated voltage: 200VAC,250VAC,400VAC,450VAC and 500VAC.
2.Rated frequency: 50Hz(60Hz).
3.Rated capacitance: Between 1.0μF and 60.0μF
4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.
5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.
6.Capacitance tolerance: Cn±5%.
7.Tangent of loss angle(tgδ): tgδ≤0.10% (at 50Hz)
8.Maximum permissible voltage:110% rated voltage.
9.Maximum permissible current:130% rated current..
10.Class of safety protection: p0(type CBB60,CBB61),P1(type CBB65)
11.Standard: In conformity with GB3667-1997, IEC60252-1993.
Model |
Capacitor |
Dimension(DxH)(mm) |
PCS/CTN |
|
CTN.MEAS. |
|
|
clips |
wires |
cables |
clips |
wires |
cables |
(L x W x H)(cm) |
CBB60 |
1uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
1.5uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
2uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
3uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
4uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
5uf |
32x55 |
32x55 |
30x55 |
300 |
300 |
300 |
51.5x26x26 |
CBB60 |
6uf |
32x55 |
32x55 |
30x70 |
300 |
300 |
250 |
51.5x26x26 |
CBB60 |
7uf |
36x58 |
36x58 |
30x70 |
300 |
300 |
250 |
51.5x26x26 |
CBB60 |
8uf |
36x58 |
36x58 |
30x70 |
300 |
300 |
250 |
51.5x26x26 |
CBB60 |
9uf |
36x58 |
36x58 |
35x68 |
300 |
300 |
250 |
51.5x26x26 |
CBB60 |
10uf |
36x58 |
36x58 |
35x68 |
300 |
300 |
250 |
51.5x26x26 |
CBB60 |
12uf |
36x70 |
36x70 |
35x68 |
250 |
250 |
250 |
51.5x26x26 |
CBB60 |
14uf |
36x70 |
36x70 |
35x68 |
250 |
250 |
250 |
51.5x26x26 |
CBB60 |
16uf |
40x70 |
40x70 |
40x70 |
200 |
200 |
200 |
51.5x26x26 |
CBB60 |
18uf |
40x70 |
40x70 |
40x70 |
200 |
200 |
200 |
51.5x26x26 |
CBB60 |
20uf |
40x70 |
40x70 |
40x70 |
200 |
200 |
200 |
51.5x26x26 |
CBB60 |
25uf |
45x75 |
45x75 |
45x70 |
125 |
125 |
125 |
51.5x26x26 |
CBB60 |
30uf |
45x75 |
45x75 |
45x70 |
125 |
125 |
125 |
51.5x26x26 |
CBB60 |
35uf |
45x92 |
45x92 |
50x90 |
125 |
125 |
100 |
51.5x26x26 |
CBB60 |
40uf |
45x92 |
45x92 |
50x90 |
125 |
125 |
100 |
51.5x26x26 |
CBB60 |
45uf |
45x92 |
45x92 |
50x90 |
125 |
125 |
100 |
51.5x26x26 |
CBB60 |
50uf |
45x92 |
45x92 |
50x90 |
125 |
125 |
100 |
51.5x26x26 |
CBB60 |
55uf |
55x117 |
55x117 |
50x90 |
64/50 |
64/50 |
100 |
51.5x26x26 |
CBB60 |
60uf |
55x117 |
55x117 |
50x90 |
64/50 |
64/50 |
100 |
51.5x26x26 |
CBB60 |
65uf |
55x117 |
55x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
70uf |
55x117 |
55x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
75uf |
55x117 |
55x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
80uf |
55x117 |
55x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
85uf |
60x117 |
60x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
90uf |
60x117 |
60x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
95uf |
60x117 |
60x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
CBB60 |
100uf |
60x117 |
60x117 |
55x132 |
64/50 |
64/50 |
50 |
51.5x26x26 |
|
