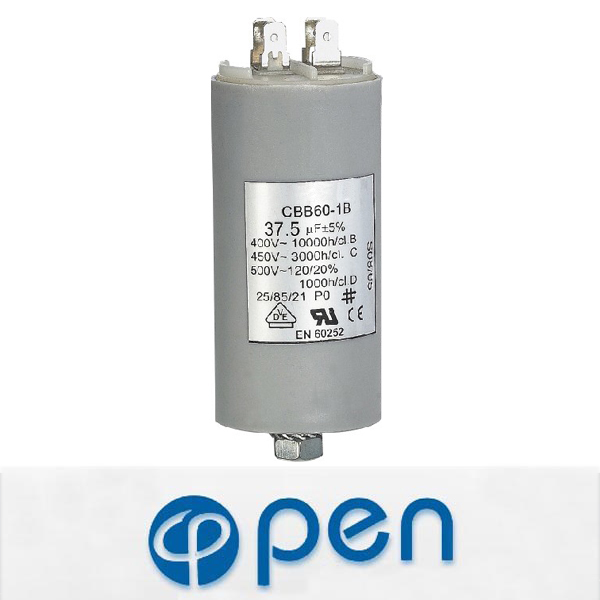

Ⅰ、General Description：
　　 Opengroup brand of CBB60 metallic polypropylene film capacitors, which can be used for the start and running of 50Hz AC(alternating current) single-phase asynchronous motors, pumps, wind machines, washing machines and so on, can be used for the no-power equalization of lamps to improve the power.

Ⅱ、Service Conditions
　　1.Altitude: The altitude of area of installation and operation not exceeding 2000m.
　　2.Residual voltage at energization : Not to exceed 10% rated voltage.
　　3.Pollution: No electric dust, no corrosive gas or inflammable and explosive medium in the area of installation and operation.
　　4.Operation temperature: Between -40℃ and +70℃
　　5.Operation way: Continuous operation.
Ⅲ、Main Technical indexes:
　　1.Rated voltage: 200VAC,250VAC,400VAC,450VAC and 500VAC.
　　2.Rated frequency: 50Hz(60Hz).
　　3.Rated capacitance: Between 1.0μF and 60.0μF
　　4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.
　　5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.
　　6.Capacitance tolerance: Cn±5%.
　　7.Tangent of loss angle(tgδ): tgδ≤0.10% (at 50Hz)
　　8.Maximum permissible voltage:110% rated voltage.
　　9.Maximum permissible current:130% rated current..
　　10.Class of safety protection: p0(type CBB60,CBB61),P1(type CBB65)
　　11.Standard: In conformity with GB3667-1997, IEC60252-1993.

Model	Capacitor	Dimension(DxH)(mm)			PCS/CTN			CTN.MEAS.
		clips	wires	cables	clips	wires	cables	(L x W x H)(cm)
CBB60	1uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	1.5uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	2uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	3uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	4uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	5uf	32x55	32x55	30x55	300	300	300	51.5x26x26
CBB60	6uf	32x55	32x55	30x70	300	300	250	51.5x26x26
CBB60	7uf	36x58	36x58	30x70	300	300	250	51.5x26x26
CBB60	8uf	36x58	36x58	30x70	300	300	250	51.5x26x26
CBB60	9uf	36x58	36x58	35x68	300	300	250	51.5x26x26
CBB60	10uf	36x58	36x58	35x68	300	300	250	51.5x26x26
CBB60	12uf	36x70	36x70	35x68	250	250	250	51.5x26x26
CBB60	14uf	36x70	36x70	35x68	250	250	250	51.5x26x26
CBB60	16uf	40x70	40x70	40x70	200	200	200	51.5x26x26
CBB60	18uf	40x70	40x70	40x70	200	200	200	51.5x26x26
CBB60	20uf	40x70	40x70	40x70	200	200	200	51.5x26x26
CBB60	25uf	45x75	45x75	45x70	125	125	125	51.5x26x26
CBB60	30uf	45x75	45x75	45x70	125	125	125	51.5x26x26
CBB60	35uf	45x92	45x92	50x90	125	125	100	51.5x26x26
CBB60	40uf	45x92	45x92	50x90	125	125	100	51.5x26x26
CBB60	45uf	45x92	45x92	50x90	125	125	100	51.5x26x26
CBB60	50uf	45x92	45x92	50x90	125	125	100	51.5x26x26
CBB60	55uf	55x117	55x117	50x90	64/50	64/50	100	51.5x26x26
CBB60	60uf	55x117	55x117	50x90	64/50	64/50	100	51.5x26x26
CBB60	65uf	55x117	55x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	70uf	55x117	55x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	75uf	55x117	55x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	80uf	55x117	55x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	85uf	60x117	60x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	90uf	60x117	60x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	95uf	60x117	60x117	55x132	64/50	64/50	50	51.5x26x26
CBB60	100uf	60x117	60x117	55x132	64/50	64/50	50	51.5x26x26
