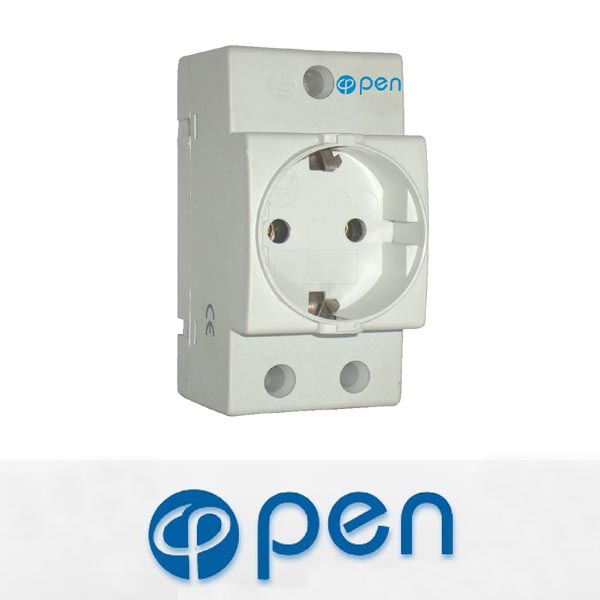

Application: The Modular Socket can be used together with our other modular products for connection of mobile devices ,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.

Specifications:

Type	Rated current (A)	Standard	Width (mm)	Connection capacity
German Style Din Rail Socket	10、16、25	Germany	44.5	≤6mm²

Technical data:

Frequency: 50 or 60 HZ	Mounting category: ⅡⅢ
Electrical life: 5000 times	Pollution degree: 2
Rated insulation voltage UI: 500V	Protection class: IP20
Rated impulse withstand voltage UI mp: 5000V	Standard mounting: 35mm DIN rail
Dielectric test voltage at lnd ,freq, For 1 min: 2.8KV	Ambient temperature:-5℃to+40℃
Dielectric test voltage at lnd ,freq, For 1 min: 2.8KV	Storage temperature: -25℃to+70℃

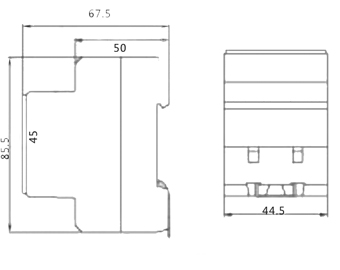

Dimensions:
