Application

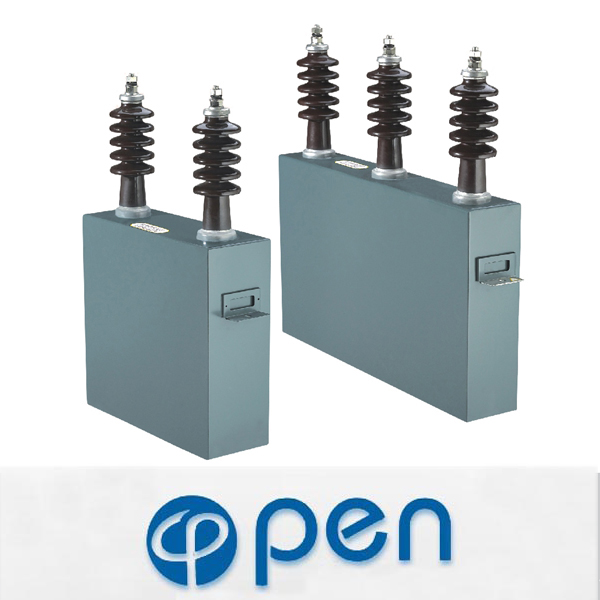

High voltage shunt capacitor is mainly used in the A.C. Power system with50Hz or 60Hz to improve power factor. The performance conforms to GB3983.2-89 High v oltage s hunt c apacitor a nd I EC60871-1.

Service Conditions

1. Altitude: less 1000m; Ambient Temperature:-40 ~+40 .
2. No violent mechanical vibration, no harmful gas and vapor, no electric, and explosive dust in location.
3. Continuous operation voltage: 1.0Un, long-term max. Overvoltage:less1.1Un.
4. Stable over-current(including harmonics current) less 1.43In.
5. Max. Permissible output: less 1.35Qn.

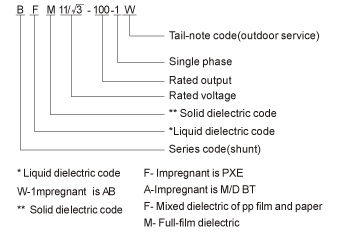

Model Meanings
